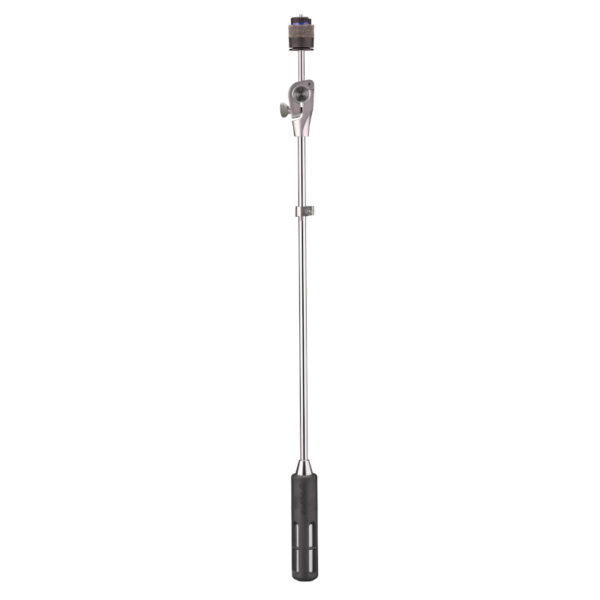

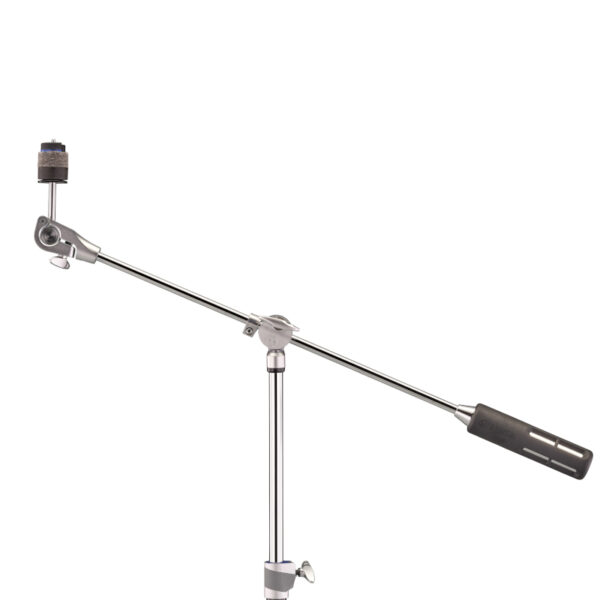

Yamaha CBW8 Boom Cymbal Arm

The Yamaha CBW8 Boom Cymbal Arm is an extra-long weighted boom designed for flexible cymbal positioning and excellent stability with larger, heavier cymbals. Featuring a 70cm boom arm with integrated counterweight, Yamaha’s QRN8 Quick Release Nut, SECW8 Sound Enhanced Cymbal Washer and Step Free Tilter, it is ideal for expanding more complex cymbal setups while maintaining secure balance and precise positioning.

Key Features:
  • Extra-long 70cm boom arm provides extended cymbal positioning
  • Integrated counterweight maintains stability with larger and heavier cymbals
  • QRN8 Quick Release Nut allows fast cymbal installation and removal
  • SECW8 Sound Enhanced Cymbal Washer promotes natural cymbal resonance and sustain
  • Step Free Tilter provides smooth, infinitely adjustable cymbal positioning
  • Compatible with Yamaha CS8W and CS7 boom cymbal stands
Availability:
Estimated Delivery Date 08/10/2026
 SKU: VGY1840

Description

Extra-Long Weighted Boom:

With a 70cm boom arm, the CBW8 provides substantially more reach for positioning cymbals within larger or more complex drum setups. The integrated boom weight counterbalances the cymbal at extended positions, providing additional stability when mounting large crash, ride or suspended cymbals.

Quick Release Nut:

The QRN8 Quick Release Nut helps reduce setup and pack-down time by allowing the cymbal nut to be attached or removed without threading it along the cymbal post. Once installed, the nut can be turned to fine-tune the cymbal’s movement and resonance, while its integrated locking mechanism keeps it securely in position.

Sound Enhanced Cymbal Washer:

The SECW8 Sound Enhanced Cymbal Washer sits beneath the cymbal, with a conventional felt washer above. Its hybrid construction combines a soft foam rubber outer section with a firmer silicone rubber core, allowing the cymbal to vibrate more freely for improved resonance and sustain. For an even more open response, the outer section can be removed and the cymbal mounted using only the inner silicone core.

Step Free Tilter:

Yamaha’s Step Free Tilter provides smooth, stepless angle adjustment, allowing the cymbal to be positioned exactly where required without the restrictions of a conventional geared tilter. The design also provides excellent durability for regular professional use.

Specifications:
  • Type: Weighted boom cymbal arm
  • Boom arm length: 70cm
  • Tilter: Step Free Tilter
  • Quick Release Nut: QRN8
  • Sound Enhanced Cymbal Washer: SECW8
  • Integrated boom counterweight
  • Compatible with Yamaha CS8W and CS7 boom cymbal stands
  • Weight: 2.3kg
Ideal For:
  • Large and complex cymbal setups
  • Large crash and ride cymbals
  • Suspended cymbal applications
  • Players requiring additional reach from an existing cymbal stand
  • Professional studio and live setups
  • Expanding Yamaha CS8W and CS7 cymbal stands
