Yamaha DTX-PROX Drum Trigger Module
£1,066.00
The Yamaha DTX-PROX is Yamaha’s flagship electronic drum module, designed for players who require extensive sound control, flexible routing and professional connectivity. Combining highly detailed acoustic drum samples with real studio ambience, intuitive Kit Modifier controls, LED rotary faders and eight individual audio outputs, the DTX-PROX is equally at home in a premium electronic drum kit, recording studio or professional live setup.
Key Features:
- Flagship Yamaha electronic drum module with detailed acoustic and electronic sounds
- Dedicated Ambience, Compression and Effect Kit Modifier controls
- Seven LED rotary faders provide fast, intuitive control over individual instruments
- Eight individual audio outputs plus master stereo outputs for professional routing
- Extensive trigger, MIDI and USB connectivity for electronic, studio and hybrid setups
- Description
- Delivery & Returns
- Warranty & 30-Day Money Back Guarantee
Description
The DTX-PROX uses carefully recorded samples of real acoustic drums and cymbals captured in professional recording studios. Yamaha also sampled the natural ambience of the rooms, allowing the module to reproduce not only the instruments themselves but also the depth and character of the spaces in which they were recorded. Detailed dynamic response allows the sounds to react naturally from delicate playing through to powerful accents.

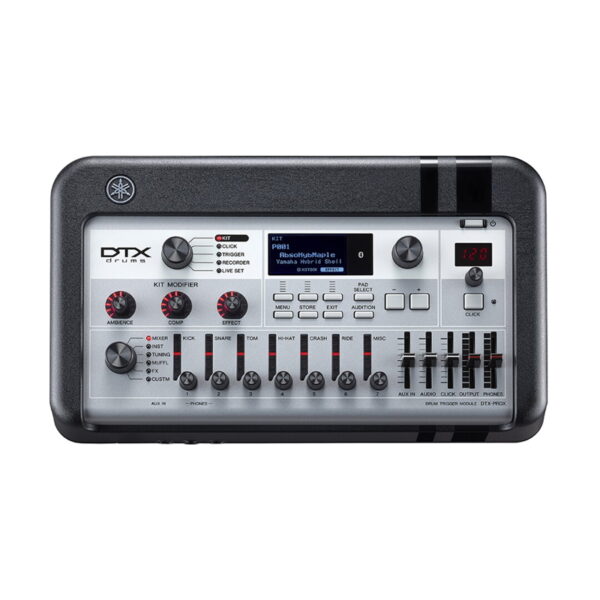

Three dedicated Kit Modifier controls provide immediate access to Ambience, Compression and Effects. These controls allow substantial changes to the overall character of a kit without navigating through menus. Seven LED rotary faders provide further hands-on control, making it quick and easy to adjust individual instruments and other parameters during practice, recording or live performance.
Sounds and Kits:
- 733 onboard voices
- 70 preset drum kits
- 200 user drum kit locations
- 256-note maximum polyphony
- Detailed acoustic drum, cymbal, percussion and electronic sounds
- User WAV sample import capability
- Import capacity for up to 1,000 audio files
- Extensive individual instrument editing
- EQ, compression, transient adjustment and insertion effects
Kit Modifier Controls:
- Ambience – adjusts the amount of natural room ambience
- Compression – provides immediate control over overall kit compression
- Effect – adjusts the selected kit effect
- Seven LED rotary faders for intuitive control of individual instruments and parameters
For detailed sound design, the DTX-PROX provides extensive processing for individual instruments including EQ, compression, transient adjustment and insertion effects. Kit-level ambience and effects are complemented by master compression, master effects and overall EQ, giving players comprehensive control over the finished sound.
Practice and Recording:
- 10 built-in training functions
- 37 preset songs
- 30 programmable click sets
- Metronome range from 30 to 300 BPM
- Tap tempo functionality
- Internal recording for up to 90 seconds
- USB recording for up to 90 minutes per file
- WAV recording and playback

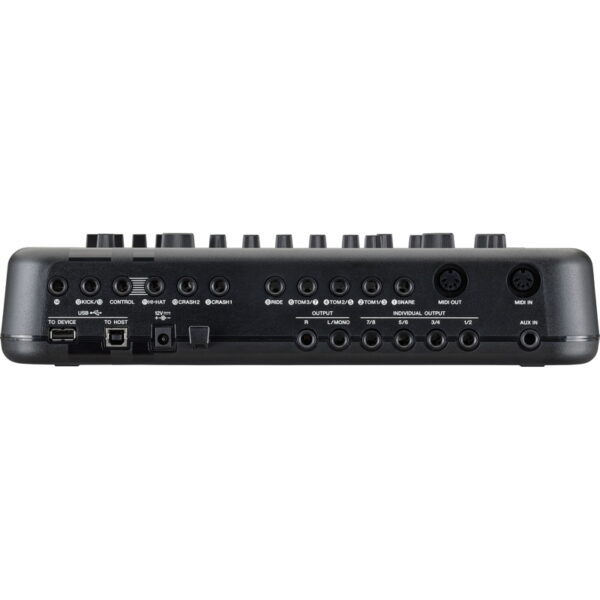

Professional Connectivity:
- Master Left/Mono and Right audio outputs
- 8 individual audio output channels
- Flexible output routing for individual instruments, click and auxiliary audio
- Standard 6.3mm stereo headphone output
- 3.5mm stereo headphone output
- Front and rear AUX inputs
- USB TO HOST for audio and MIDI connectivity
- USB TO DEVICE for USB storage
- 5-pin MIDI In and Out
- 10 trigger input sockets with support for up to 14 pads using suitable Y-cables
The DTX-PROX is particularly well suited to professional stage and studio applications. Eight individual output channels allow separate instruments to be routed to a mixer or audio interface, while the flexible internal routing system can send click, USB audio and AUX signals to selected outputs or headphones. Separate front and rear AUX inputs also make it easy to integrate backing tracks, smart devices, instruments and monitor feeds.
Specifications:
- Maximum polyphony: 256 notes
- Onboard voices: 733
- Preset kits: 70
- User kits: 200
- User sample import: Up to 1,000 WAV files
- Display: 128 x 64 dot LCD
- Dimensions: 342 x 196 x 66mm
- Weight: 2.0kg
Built to Perform:
- Detailed Yamaha acoustic drum samples provide excellent dynamic expression
- Real studio ambience creates convincing depth and acoustic character
- Kit Modifier controls make dramatic sound changes quick and intuitive
- LED rotary faders provide immediate hands-on control during playing and editing
- Eight individual outputs provide the flexibility required for professional live and studio use
- Extensive trigger connectivity makes the module suitable for large custom electronic drum setups
Ideal For:
- Professional electronic drummers
- Upgrading a compatible Yamaha electronic drum kit
- Building a premium custom electronic drum setup
- Professional studio recording and music production
- Live performance with individual instrument routing
- Electronic and hybrid drum setups requiring extensive connectivity and sound control
Please note: This product is the Yamaha DTX-PROX drum trigger module. Drum pads, cymbals, rack, pedals and other electronic drum kit hardware are not included.
