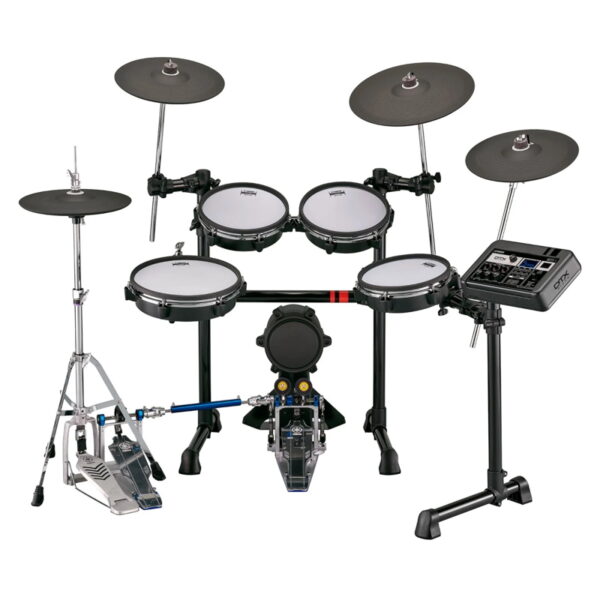

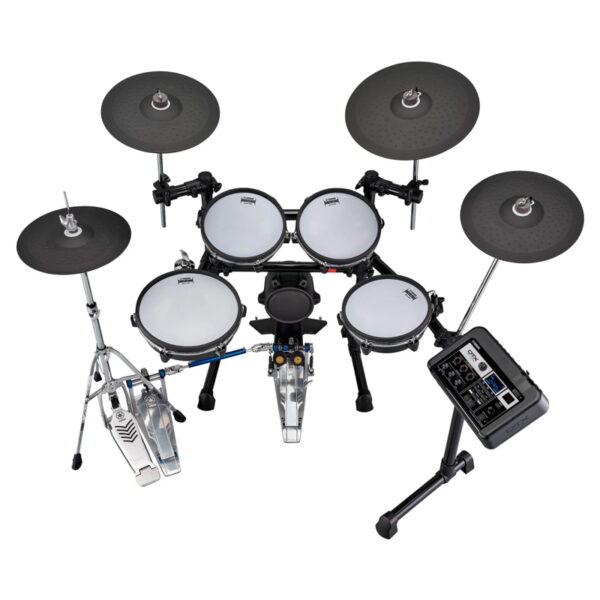

Yamaha DTX6K5-M Electronic Drum Kit

Description

The DTX6K5-M is designed around a more acoustic-style playing experience than smaller electronic kits. Its 12″ XP120L-M snare and three 10″ XP100L-M tom pads use two-ply Remo mesh heads, providing adjustable tension, comfortable rebound and excellent acoustic noise reduction. The pads also use acoustic-style hoops to provide a familiar feel around the playing surface.

Cymbal sizes are equally generous, with two 13″ PCY135 crash pads and a 15″ PCY155 ride. All three cymbals provide separate edge, bow and cup sounds as well as choke and mute functionality. The ride also features positional sensing, allowing the sound to change depending on where the playing surface is struck. The RHH135 hi-hat sits on a conventional Yamaha HS650A hi-hat stand, providing familiar positioning and pedal operation.

Pad Configuration:

• XP120L-M 12″ Mesh Snare Pad – 2-zone
• 2 x XP100L-M 10″ Mesh Rack Tom Pads – 2-zone
• XP100L-M 10″ Mesh Floor Tom Pad – 2-zone
• KP90 7.5″ Kick Pad with multi-layer cushion
• RHH135 13″ Hi-Hat Pad – 2-zone
• 2 x PCY135 13″ Crash Cymbal Pads – 3-zone
• PCY155 15″ Ride Cymbal Pad – 3-zone with positional sensing

DTX-PRO Sound Module:

• High-quality Yamaha acoustic drum and percussion sounds
• Drum sounds and room ambience recorded in professional studios
• Dedicated Ambience, Compression and Effect Kit Modifier controls
• Extensive kit and instrument editing
• Built-in recording functionality
• 10 built-in training functions
• USB audio and MIDI connectivity
• AUX input for playing along with external audio
• Compatible with Yamaha DTX Touch
• Compatible with Yamaha Rec’n’Share
• Cubase AI music production software included

The DTX-PRO module is designed to make detailed sound shaping accessible without requiring constant menu navigation. Its dedicated Ambience, Compression and Effect controls allow the character of the entire kit to be adjusted quickly, from natural acoustic sounds through to heavily processed electronic setups. Yamaha’s acoustic drum samples were recorded in professional studios, with the ambience of the recording spaces captured alongside the instruments to create a convincing sense of depth.

Included Hardware:

• RS6 Electronic Drum Rack
• HS650A Hi-Hat Stand
• Snare mounting arm
• Module holder
• Power adaptor

Specifications:

• Sound module: Yamaha DTX-PRO
• Snare head: Two-ply Remo mesh
• Tom heads: Two-ply Remo mesh
• Snare size: 12″
• Tom sizes: 10″
• Hi-hat size: 13″
• Crash sizes: 13″
• Ride size: 15″
• Average footprint: 1,100mm x 1,400mm
• Approximate weight: 32.2kg
• Expandable to support up to 14 pads

Built to Perform:

• Large mesh pads provide a spacious playing setup with natural rebound
• Two-ply Remo heads combine durability with excellent acoustic noise reduction
• Three-zone cymbals allow detailed bow, edge and cup articulation
• Positional sensing on the ride provides additional tonal expression
• Conventional hi-hat stand creates a familiar setup for acoustic drummers
• Additional trigger inputs allow the kit to expand as the player’s requirements develop

Ideal For:

• Intermediate and advanced electronic drummers
• Acoustic drummers looking for a responsive electronic practice kit
• Home practice at reduced acoustic volume
• Recording and music production
• Players who prefer mesh heads and larger playing surfaces
• Drummers looking for an electronic kit that can expand as their setup develops

Please note: Bass drum pedal, drum throne, headphones and drumsticks are not included.
