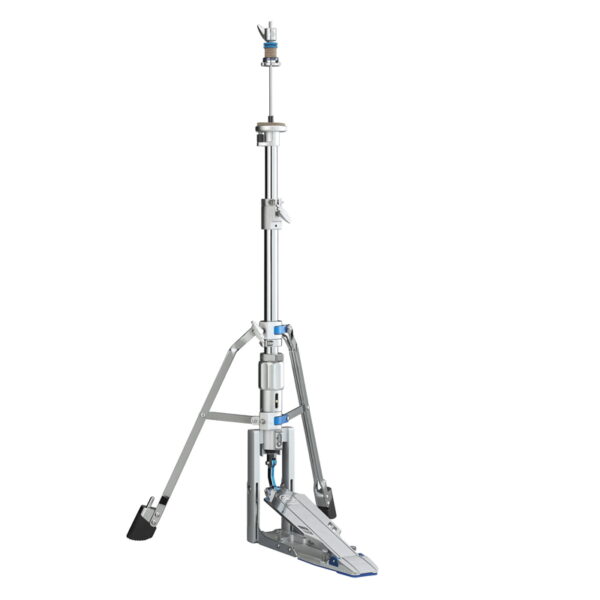

Yamaha HHS9D Hi-Hat Stand
£499.00
The Yamaha HHS9D Hi-Hat Stand is Yamaha’s flagship hi-hat stand, designed to provide exceptional freedom of positioning, smooth pedal response and extensive adjustment for professional drummers. Sharing design principles with Yamaha’s FP9 pedal series, the HHS9D combines a direct-link drive, ball-bearing action, independently swivelling double-braced legs and a mirror-finished footboard with a comprehensive range of adjustments for tailoring the stand to each player’s technique and setup.
Key Features:
- Flagship Yamaha hi-hat stand with Direct Link System
- Ball bearings throughout key moving points provide exceptionally smooth pedal action
- Independent Swivel Legs provide exceptional freedom when positioning the stand
- LC9 Twist to Set Hi-Hat Clutch provides fast, secure cymbal installation
- Cast metal cymbal seat and hard felt help produce a crisp, defined foot-close sound
- 360 Memory Lock maintains both height and rotational positioning
- Adjustable spring tension and footboard angle allow extensive response customisation
- Throw and Go Baseplate simplifies setup, transport and storage
- Description
- Delivery & Returns
- Warranty & 30-Day Money Back Guarantee
Description

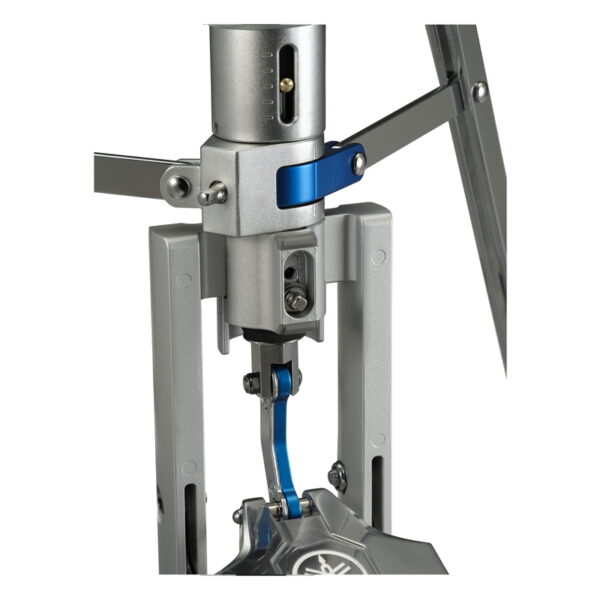

Smooth Direct-Link Action:
The HHS9D uses Yamaha’s Direct Link System with ball bearings incorporated into both the upper and lower sections of the linkage as well as the hinge. This reduces friction throughout the pedal mechanism for smooth, responsive footwork across a wide dynamic range.
The mirror-finished footboard shares its distinctive appearance with Yamaha’s flagship FP9 pedal series, including elegant blue accents and a low-profile heel designed to promote smooth and natural pedal technique.
Independent Swivel Legs:
Two independently movable double-braced legs provide exceptional freedom when positioning the HHS9D. Each leg can be adjusted separately, making it easier to integrate the stand around bass drum pedals, additional hardware and more complex kit configurations. Position markings make it straightforward to reproduce a stable setup consistently.
LC9 Twist to Set Hi-Hat Clutch:
The included LC9 clutch uses Yamaha’s Twist to Set mechanism, allowing the clutch nut to be attached with a simple twist for faster cymbal installation. Double locking nuts help prevent unwanted loosening during performance, while a protective plate helps protect the hi-hat shaft.
Cast Metal Cymbal Seat:
A cast metal lower cymbal seat is combined with harder felt to help produce a sharp, rich and clearly defined foot-close sound. The cymbal seat also incorporates angle adjustment with an anti-loosening mechanism, allowing the lower cymbal angle to be fine-tuned while maintaining a reliable setting.

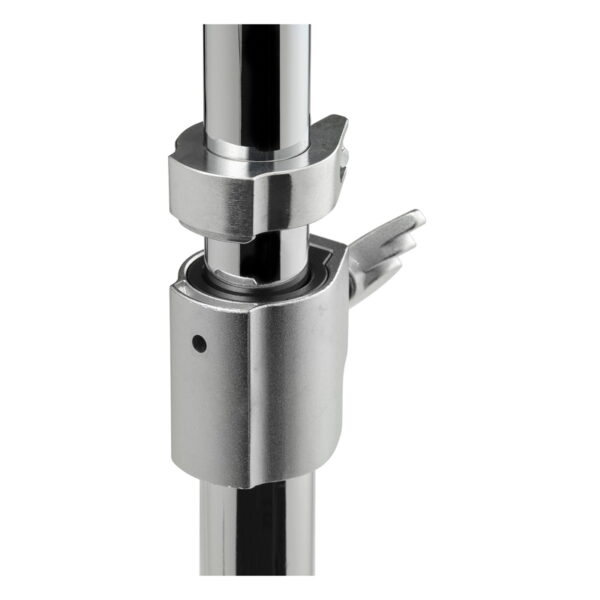

360 Memory Lock:
Yamaha’s 360 Memory Lock maintains more than the stand’s vertical height. It also fixes the rotational position of the upper assembly, helping maintain the position of the cymbal angle adjustment mechanism and making it easier to reproduce the same setup after transportation.
Adjustable Pedal Response:
- Spring Tension: Durable alloy adjustment dial provides a wide range of tension settings with a visible indicator
- Footboard Angle: One-touch mechanism allows the footboard angle to be adjusted by loosening a single bolt
- Low-Profile Heel: FP9-inspired heel design promotes smooth pedal movement
- Anti-Skid Heel Spikes: Integrated spikes provide additional grip when required
Throw and Go Baseplate:
The baseplate can be secured in a raised position to make packing and transportation easier. A high-strength metal connecting plate helps prevent unwanted lateral movement of the footboard, while the aluminium baseplate combines strength with reduced weight.
Specifications:
- Drive system: Direct Link System
- Available height range: 73.9 – 105.2cm
- Hi-hat clutch: LC9 Twist to Set Hi-Hat Clutch
- Cymbal support: Hard felt
- Cymbal angle adjustment: Yes, with fixing nut
- Leg design: 2 independently swivelling double-braced legs
- Spring tension adjustment: Yes
- Footboard angle adjustment: Yes
- 360 Memory Lock
- Large rubber feet with integrated spikes
- Mirror-finished footboard
- Throw and Go Baseplate
Included Accessories:
- LC9 hi-hat clutch
- Regular hi-hat shaft
- Long hi-hat shaft
- Drum key
Ideal For:
- Professional and touring drummers
- Players requiring exceptionally smooth and responsive hi-hat action
- Double bass pedal and complex hardware setups
- Drummers who require extensive pedal response adjustment
- Studio recording and live performance
- Players looking for Yamaha’s flagship hi-hat hardware
